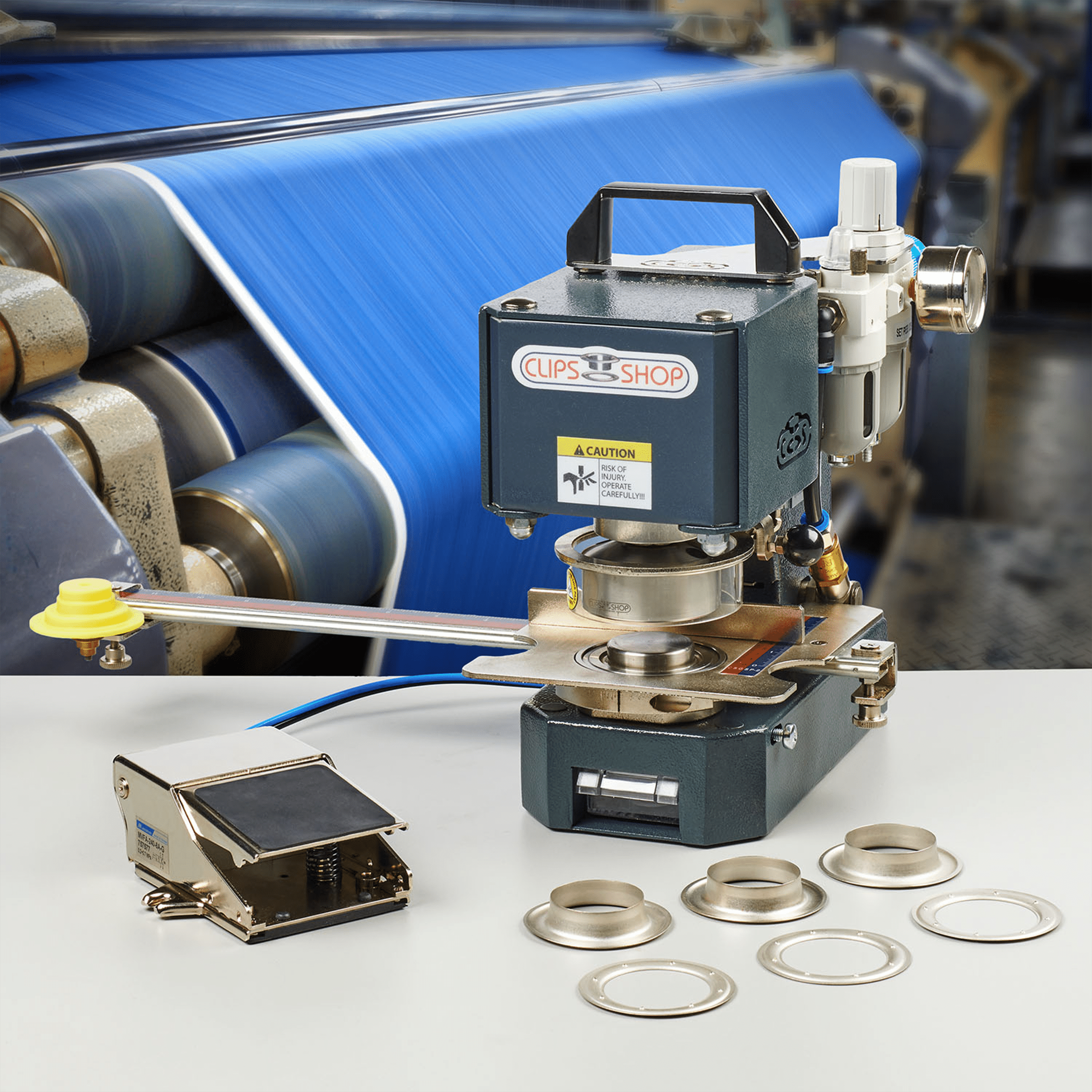

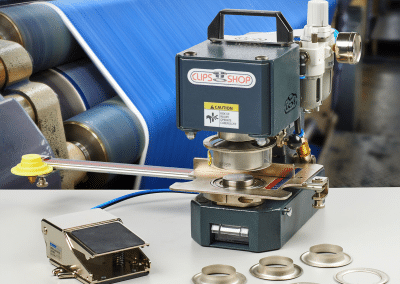

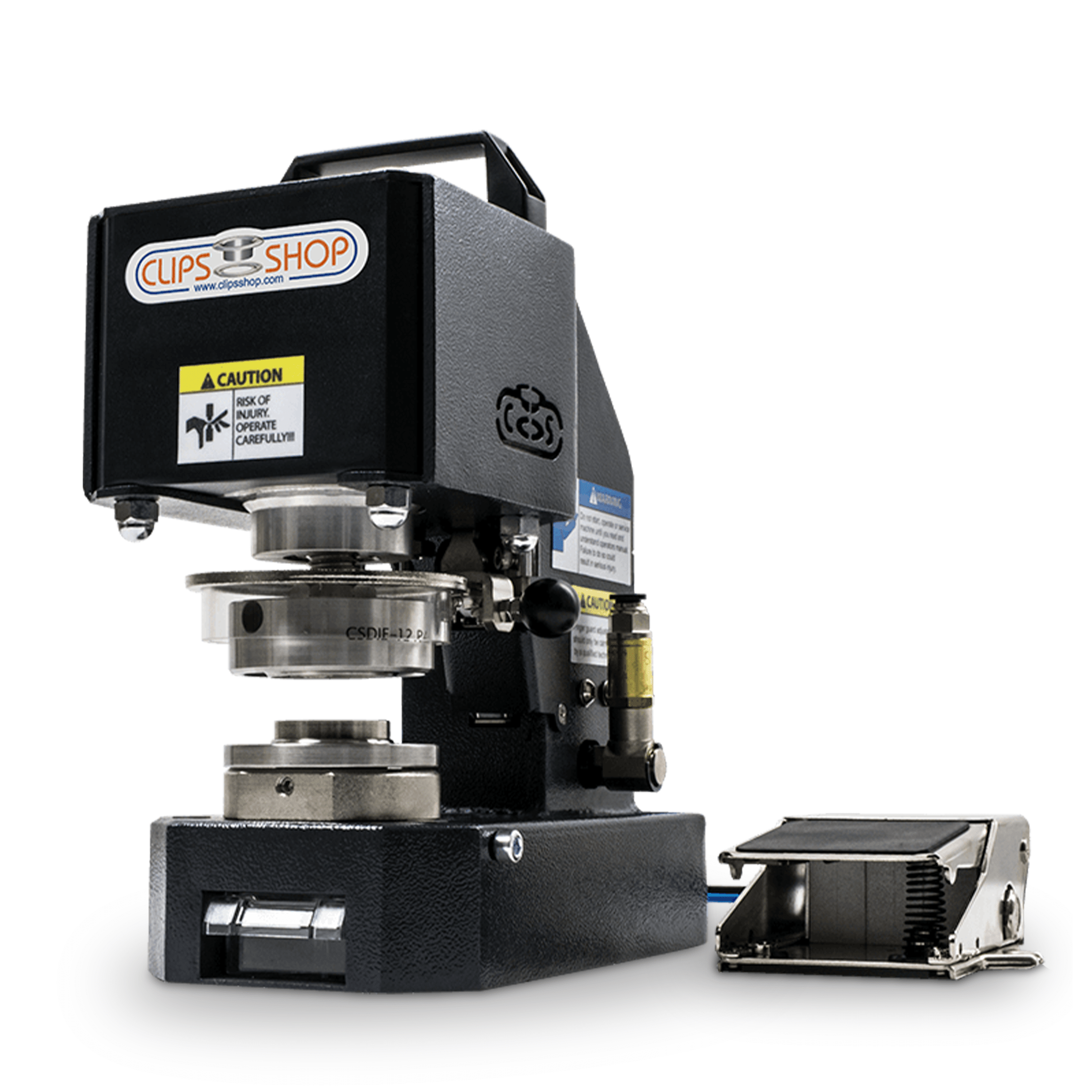

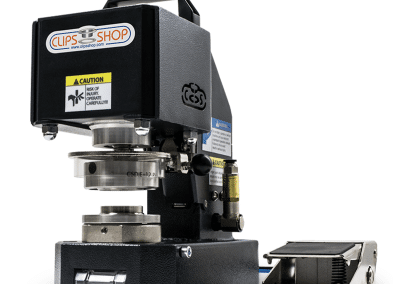

CSTIDY-51 Overview
Following the great success of CS-TIDY-41, we targeted to make an extended force version of this smart machine to be even capable of attaching X-large curtain eyelets including #12 (40 mm ID) ones. We developed the CS-TIDY-51 with a new system that doubles the generated force and modified the machine construction to answer the needs of the increased forces.
The CS-TIDY-51 is a heavy-duty industrial machine and it is also in a class of its own with unique features and an extensive accessory selection, yet it is still affordable.
The CS-TIDY-51 is the second lightest pneumatic grommet attaching machine ever following CS-TIDY-41 and thanks to its super compact size and the built-in carrying handle,
CSTIDY-51 Details

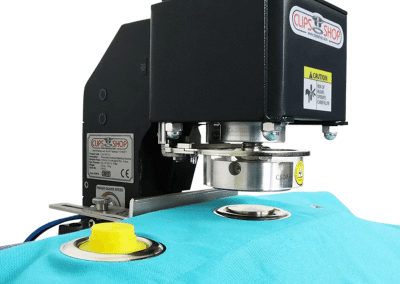

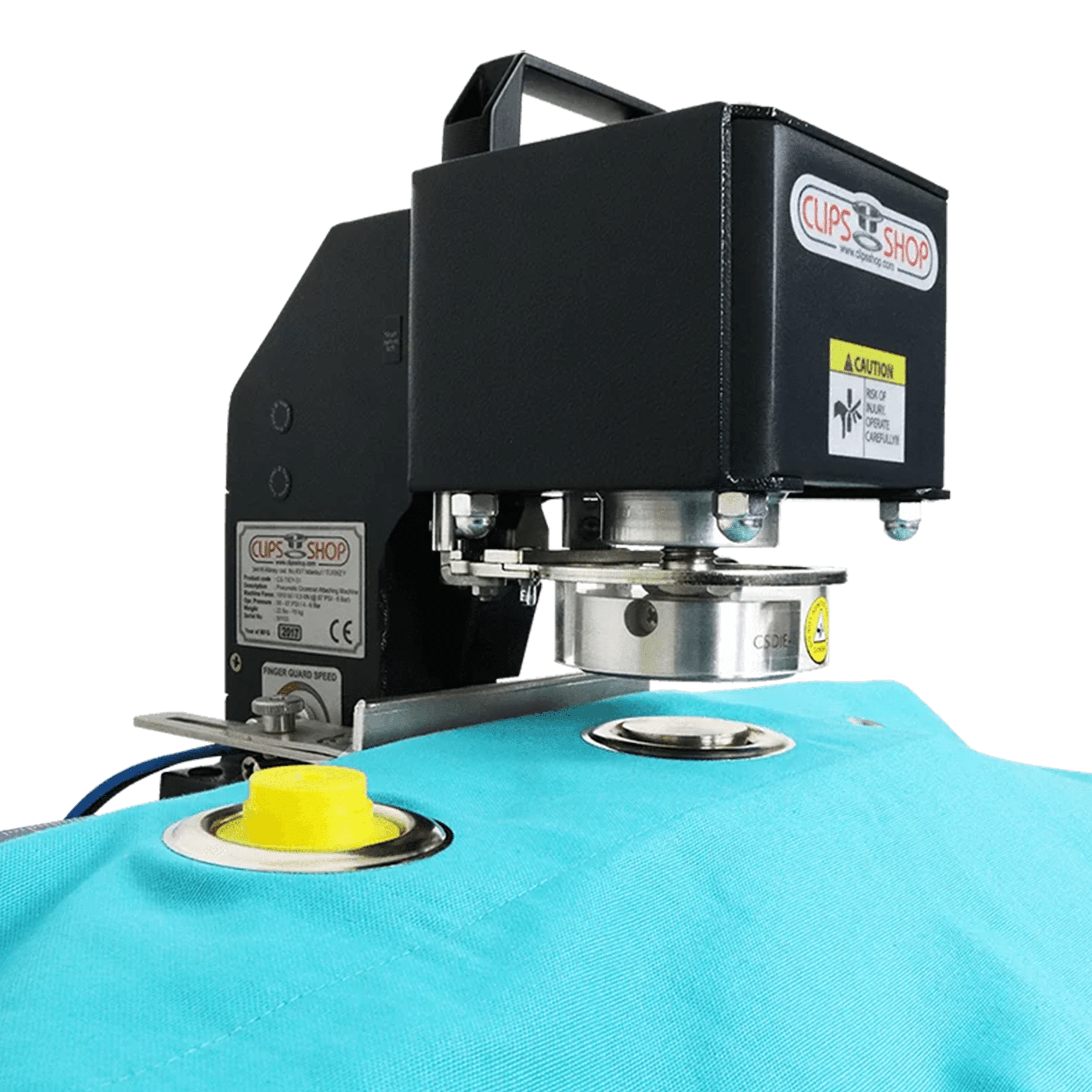

- Extended Force Generation. Able to attach X-large curtain eyelets including #12 (40 mm ID) eyelets
- Heavy Duty, industrial machine.
- Low weight and compact size.
- Built-in carrying handle.
- Compatible with the ClipsShop Large GrommetSniper™ and GrommetSniper™ Accessory Alignment Fixture for consistent placement of grommets.
- Works with standard air and needs no electricity.
- Non-electric OSHA approved safety system
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MATERIAL EXAMPLES | Chipboard, poster board, paper, vinyl, other plastics, curtain fabrics, industrial textiles and many more! |
| FEEDING | Manual grommet & washer feed |
| OPERATING PRESSURE | 4 – 6 Bar / 58 – 87 PSI |
| THROAT DEPTH | 4″ / 100 mm from grommet center |
| MACHINE FORCE | 8.4kN / 860 kgf / 1895 lbf (@ 6 Bar – 87 PSI working pressure) |
| NET WEIGHT | 22 lbs / 9.5 kg |
| DIMENSIONS | 4 3/4” x 9 5/8” x 11 1/4”/ 120 mm x 245 mm x 285 mm |
Applicable Grommet Sizes with ClipsShop engineered 2-step piercing and setting dies:
#12, #8.5, #7.5
Applicable Grommet Sizes with ClipsShop Proprietary Self-Cleaning piercing setting dies:
#5.5, #5, #4, #3, #3LN, #2, #2LN, #1
Applicable Grommet Sizes with standard stainless steel self-piercing dies:
#5.5, #5, #4,#3, #3LN, #2, #2LN, #1, #0, #00, #X00, #XX00
Applicable Grommet Sizes with Special Two-Step cutter and attacher dies:
#12, #8.5, #7.5
