Made from stainless steel, high-quality and extremely durable grommet setting attaching dies for ClipsShop self-piercing metal grommets

Available sizes from as small as #XX00 dies (1/8″) up to #5.5 dies (11/16″).

ClipsShop self-piercing grommets function together with our specially designed self-piercing dies. This combination enables the grommet machine to pierce and set a grommet in a single action without pre-punching a hole.

Our self-piercing dies are engineered to work interchangeably with our grommet hand presses and setting machines.Changing dies with other machines is frequently difficult and sometimes impossible.

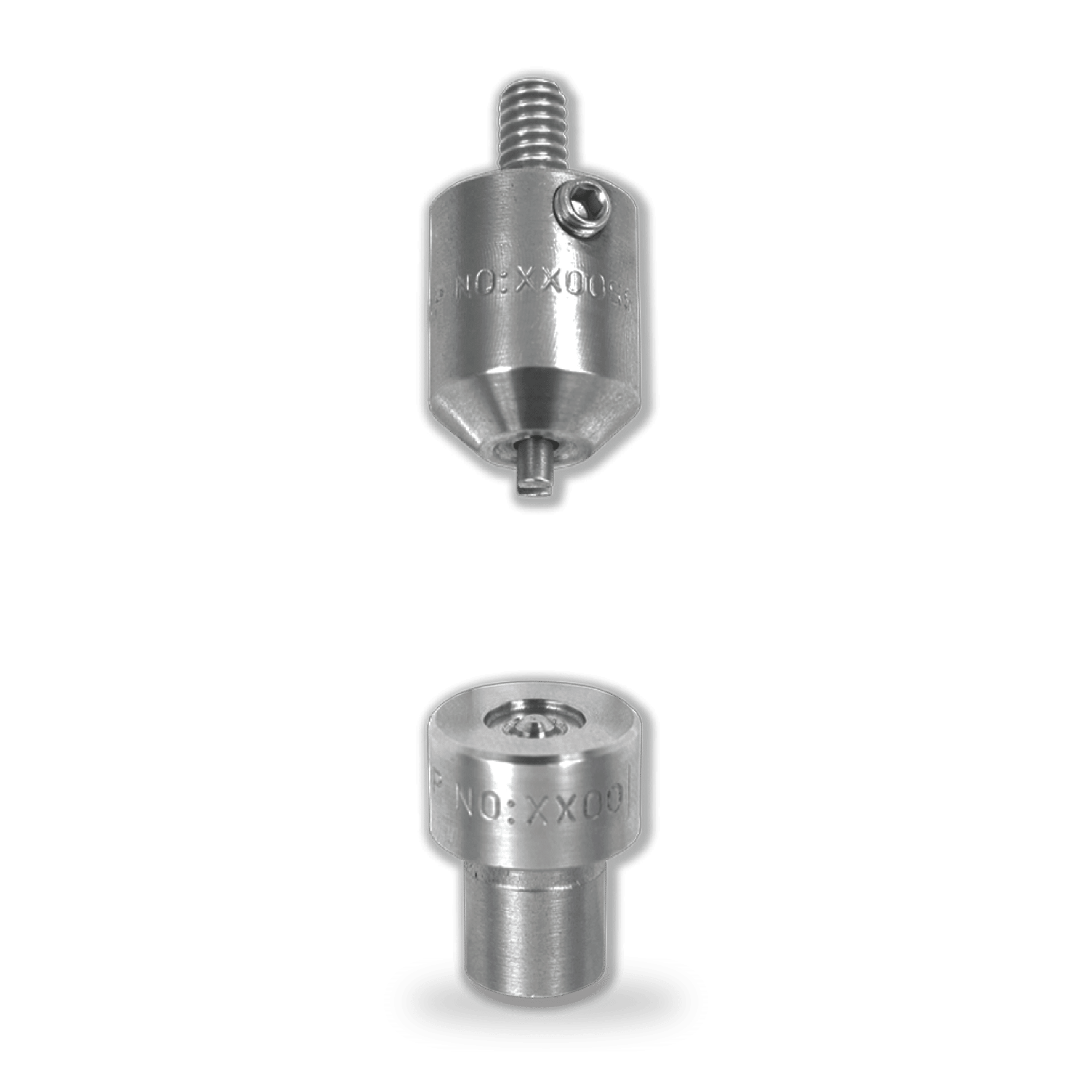

#XX00

1/8 INCH / 3.4 MM
Self Piercing Die

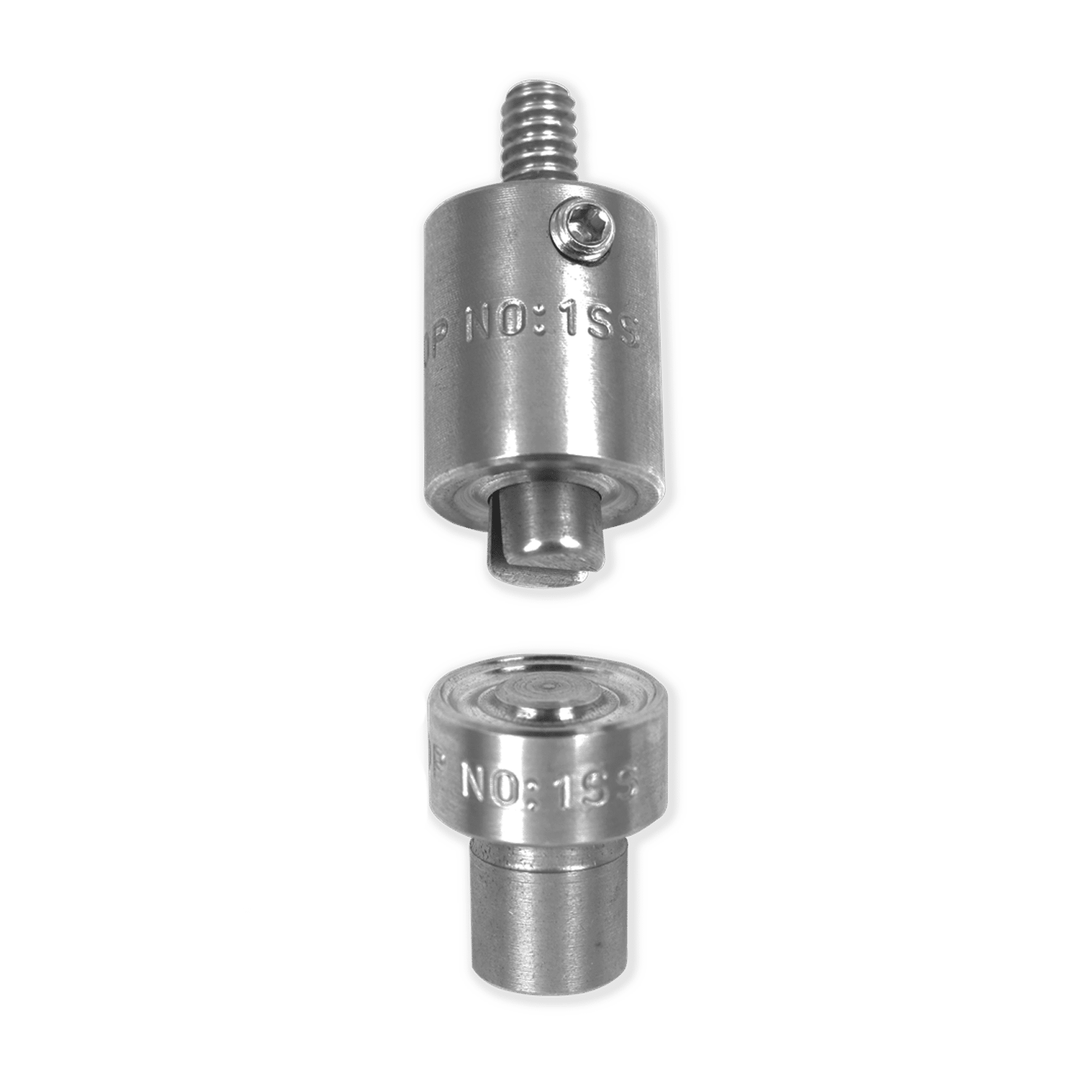

#1

5/16 INCH / 8 MM
Self Piercing Die

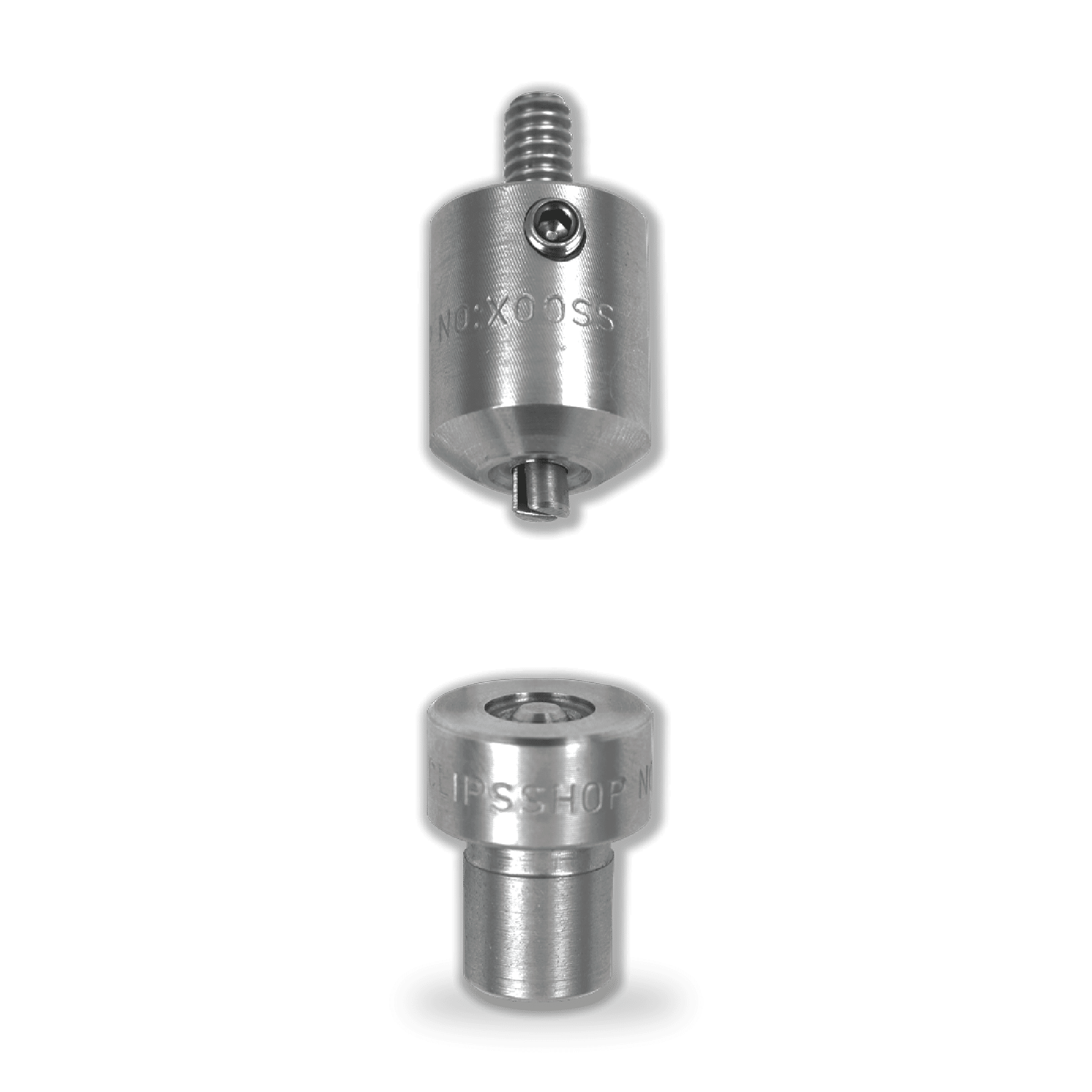

#X00

11/64 INCH / 4.4 MM
Self Piercing Die

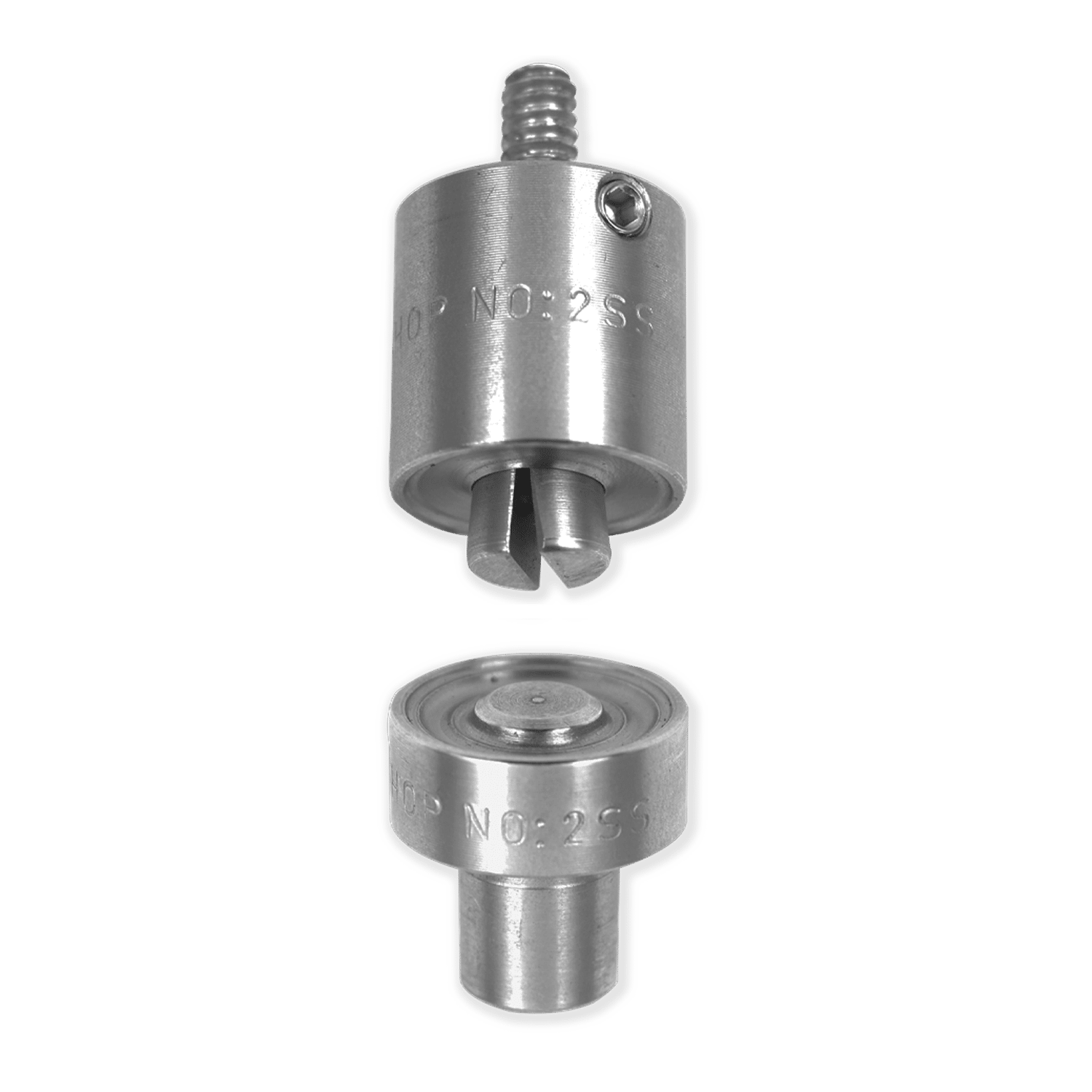

#2

3/8 INCH / 9.4 MM
Self Piercing Die

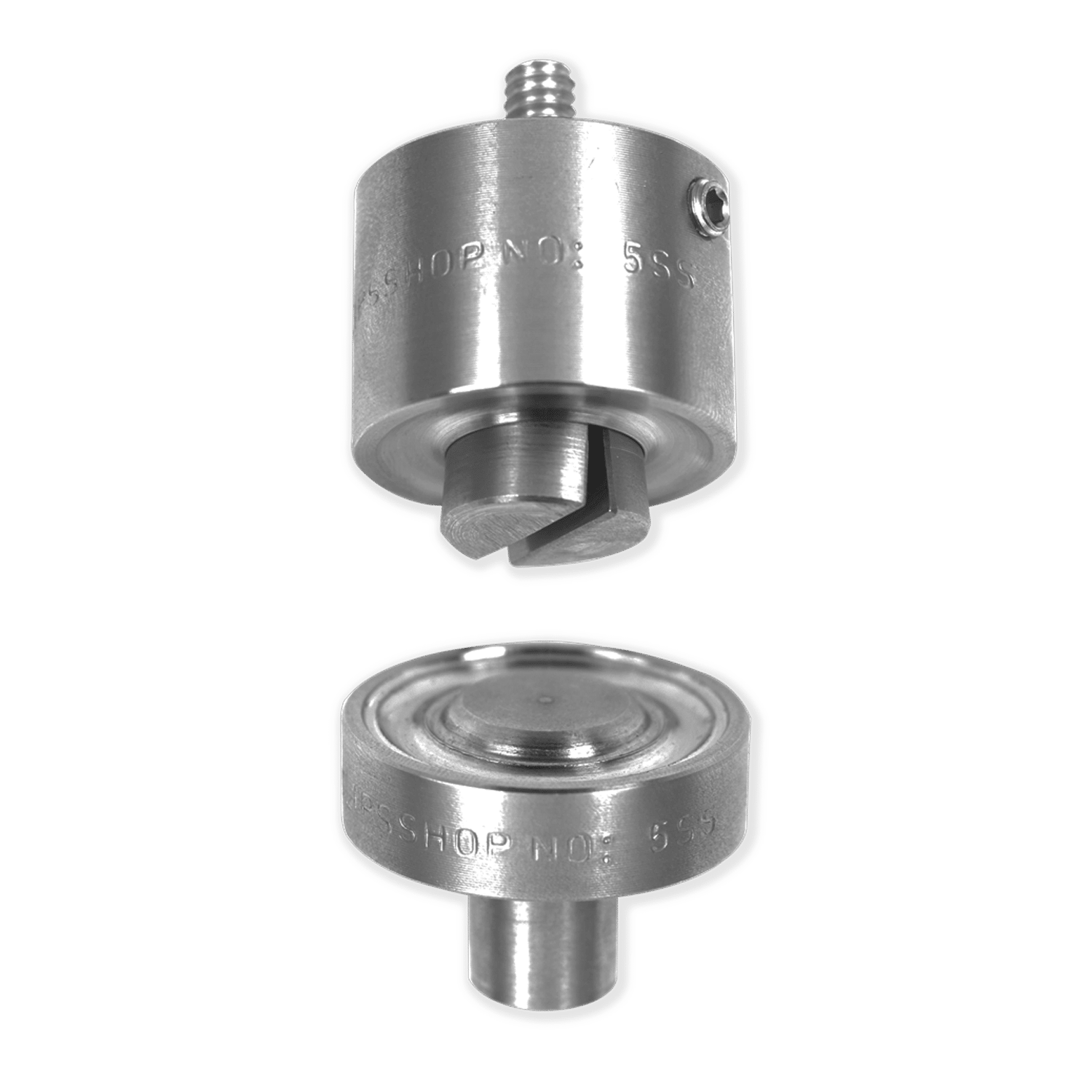

#5

10/16 INCH / 15 MM
Self Piercing Die

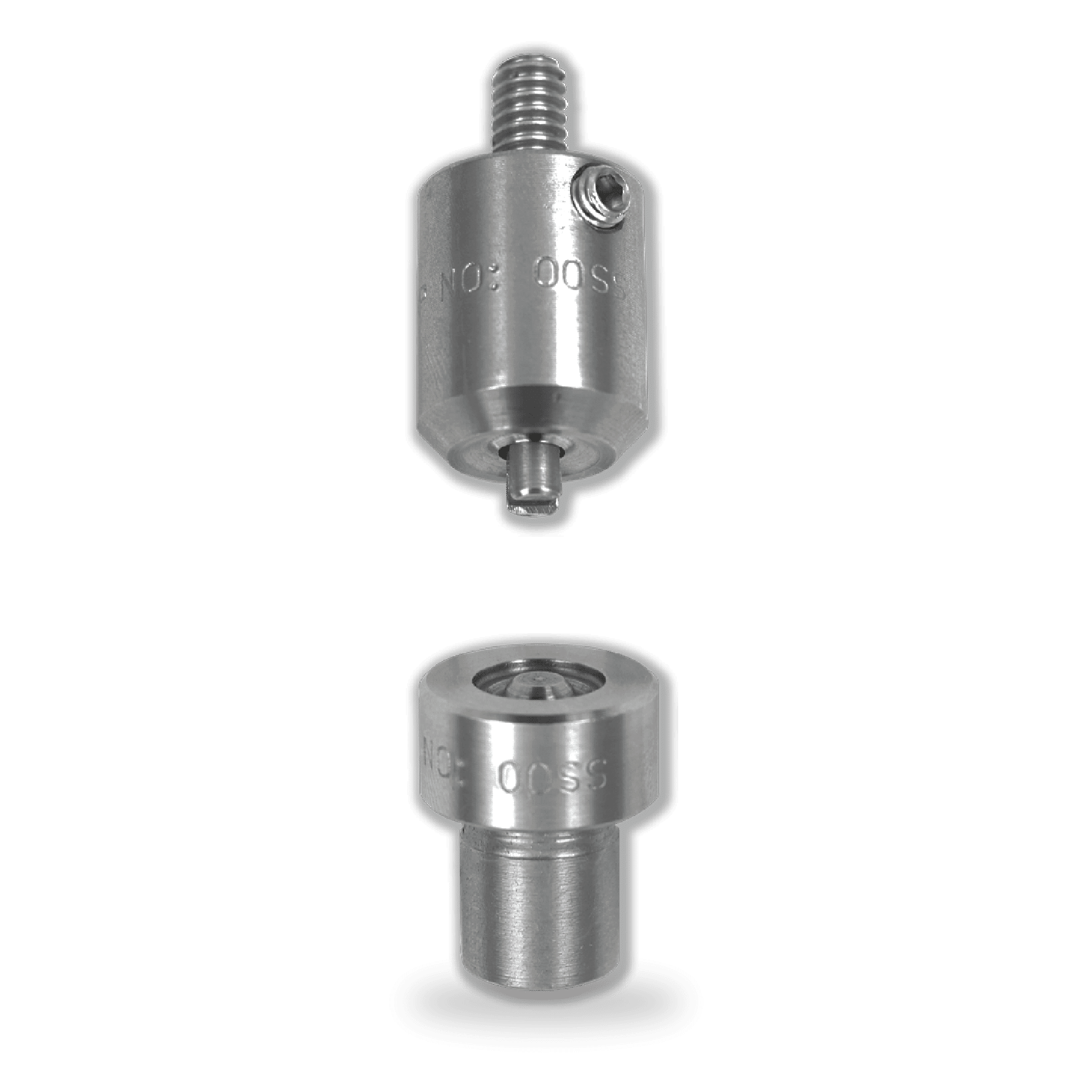

#00

3/16 INCH / 5 MM
Self Piercing Die

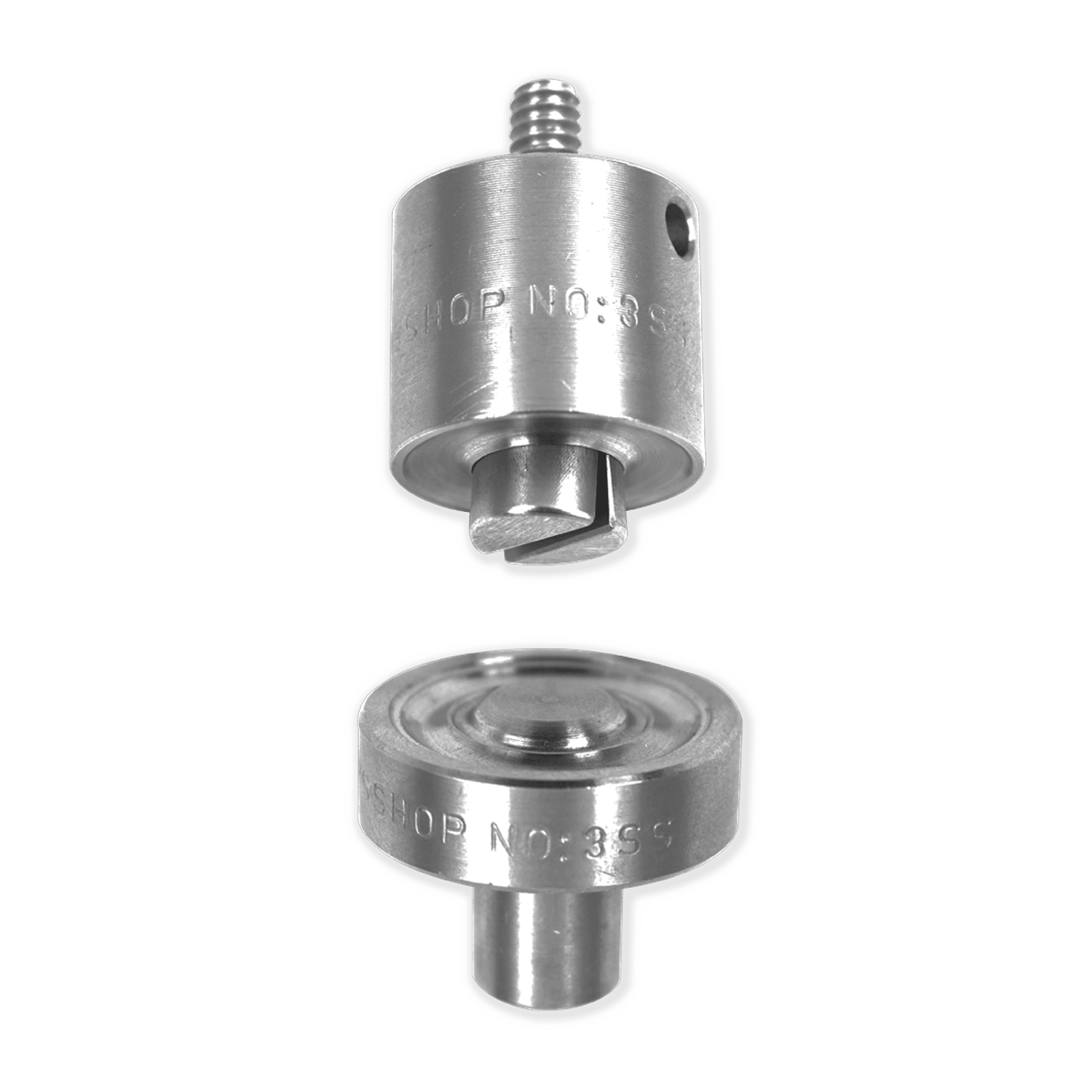

#3

7/16 INCH / 11.6 MM
Self Piercing Die

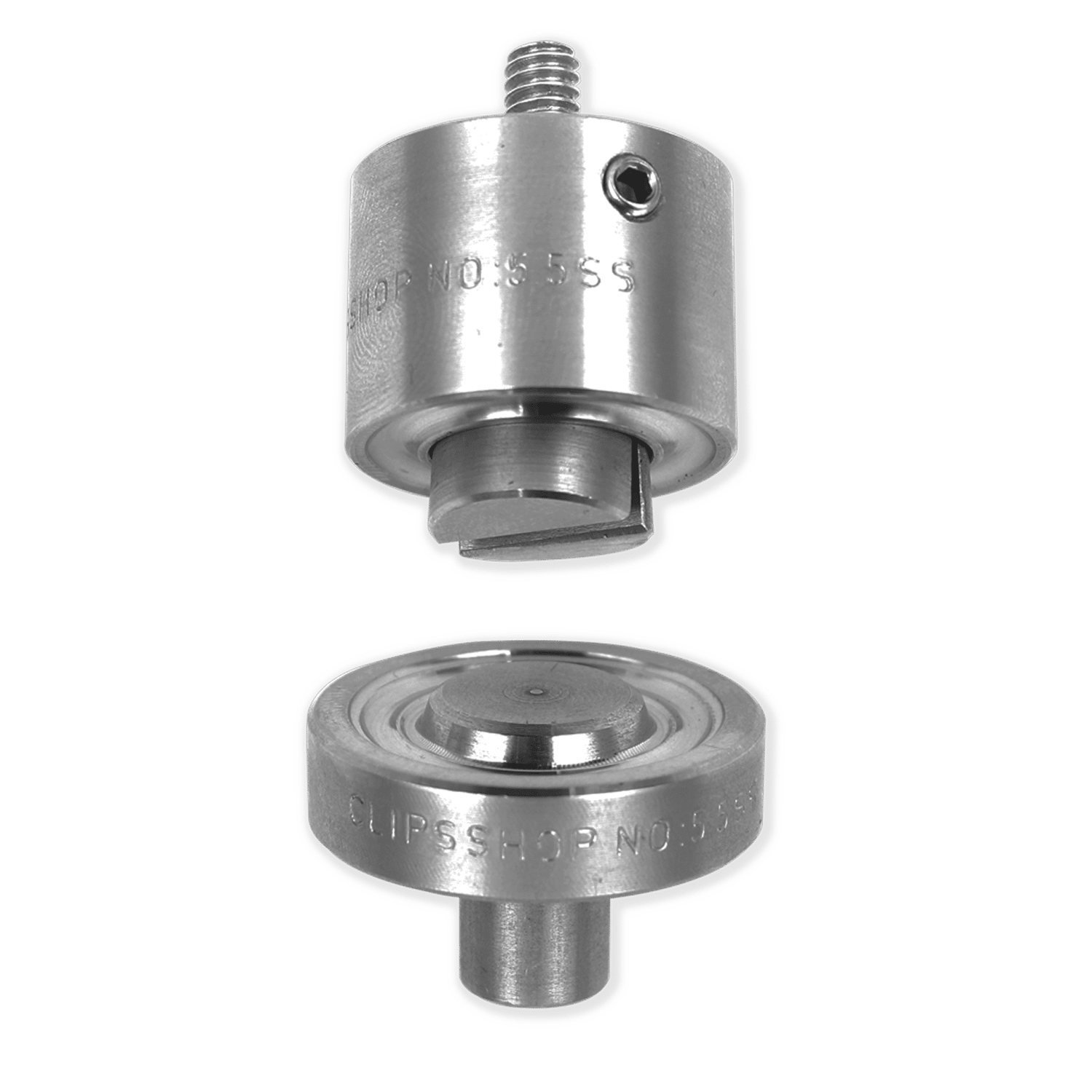

#5.5

11/16 INCH / 16.7 MM
Self Piercing Die

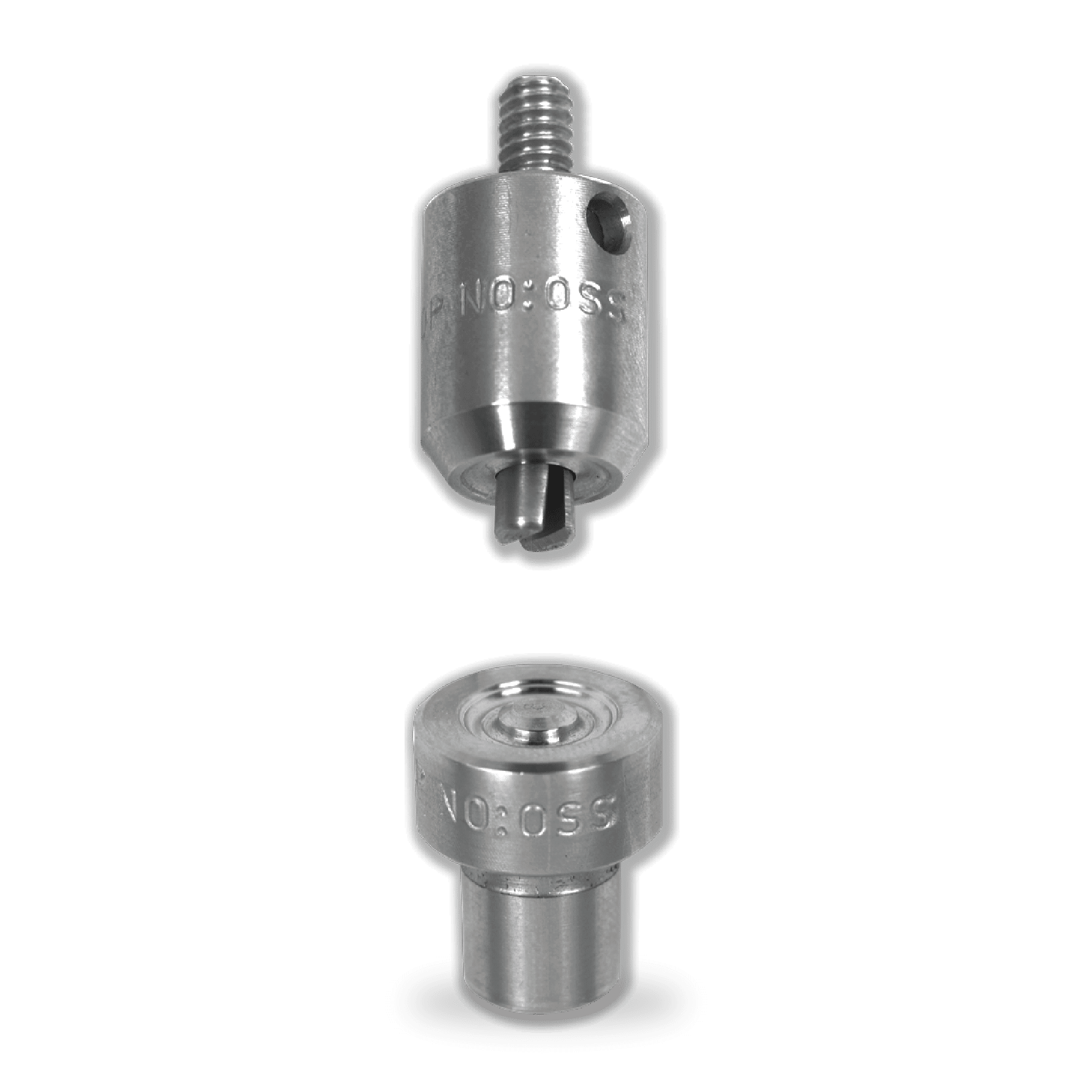

#0

1/4 INCH / 5.8 MM
Self Piercing Die

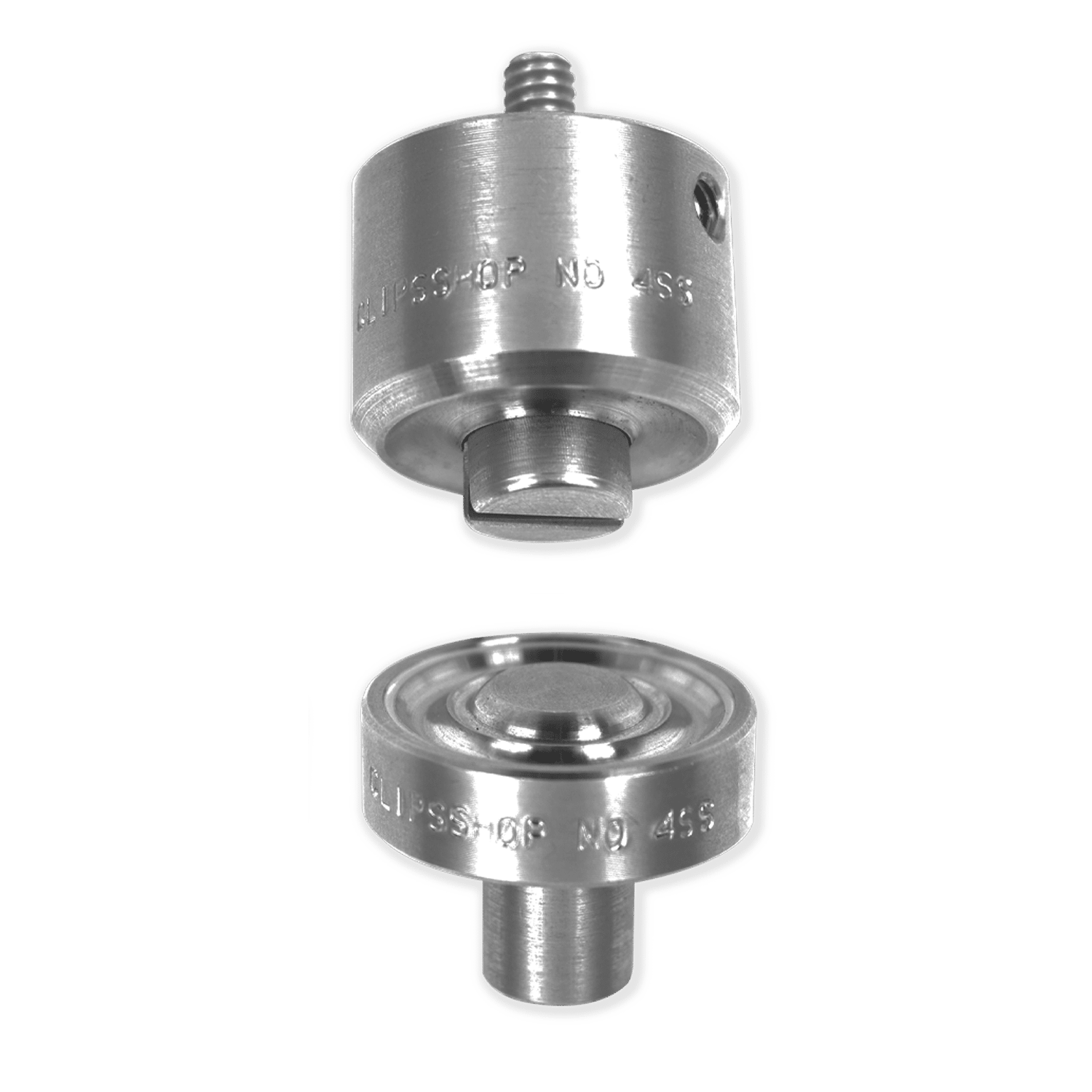

#4

8/16 INCH / 12.7 MM
Self Piercing Die

TECHNICAL DATA
GROMMET
SIZES
HOLE SIZE APPLICABLE WITH
INCH MM CSTEP-1 CSTEP-2 CSTON-1 CSBUR-1 CS-TIDY-41 CS-TIDY-51
#XX00 1/8 3.4 + + + + + +
#X00 11/64 4.4 + + + + + +
#00 3/16 5 + + + + + +
#0 1/4 5.8 + + + + + +
#1 5/16 8 + + + + + +
#2 3/8 9.4 + + + + + +
#3 7/16 11.6 + + + + + +
#4 8/16 12.7 + + + + + +
#5 10/16 15   + + + + +
#5.5 11/16 16.7   + + + + +
